XPR-9FSX 9,000 Lb. Capacity, Floor Plate, Chain-Over, Wide

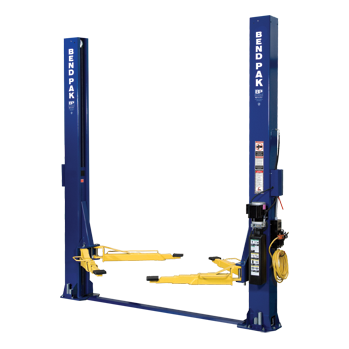

BendPak XPR-9FSX short-style floor plate two post lift wide
DISCONTINUED

    The BendPak product has been discontinued.
    This page exists for informational purposes only.

    Our newest line of XPR-Series 2-Post lifts offers a wide selection of durable, safe and reliable systems for virtually every lifting application. Powerful and secure, BendPak's XPR-9FSX in particular has shorter columns, an incredibly rapid lift speed and a robust menu of features to increase efficiency and productivity, but with fewer serviceable parts and reduced necessary maintenance. The results are lower operating expenses and higher productivity. If you're looking to make more money in less time than ever before, you'll find that the new XPR-9FSX  lift is the perfect addition to your shop—especially when you work with wider bodied vehicles and require a longer reach.

    This two-post model easily has the capacity to lift some of your largest full-sized pickups and commercial cars, yet still provide specific capability for sport and compact vehicles, both foreign and domestic—the XPR-9FSX  is a rugged, open-top model lift with a 9,000-lb. maximum capacity. And when it comes to ease of use, our dual-synchro equalization system and user-friendly controls are the stuff of legends. Some other BendPak XPR-Series exclusives include: 16 individual maintenance-free UHMW load bearings, single-piece columns, extra-tall lifting carriages and oversize 5” cable sheaves. And, to better cater to your specific lifting needs, we offer optional specialty arm configurations.

    The entire XPR-Series is a reflection of BendPak's continuing commitment to producing lifts of only the highest quality, maximum safety and utmost reliability. Featuring the most advanced engineered technology available in the industry, these lifts are built to safety standards well above normal OSHA/ALI/ETL requirements. The XPR-Series lifts include a wealth of standard and optional features to support the operator's need for performance and security. Combined with BendPak's tradition of durable, reliable construction, the XPR-Series has become the new industry benchmark that others are sure to follow.
    Whatever your requirements, there's a BendPak XPR-Series 2-Post lift designed to meet your needs. The XPR-Series offers an abundant roster of options and accessories that allows you to fully tailor your lift to your unique circumstance. But long before you start looking at options, you'll be impressed with the long list of standard features and capabilities packed into every BendPak XPR-Series lift.

    Bottom line—when you buy BendPak, you can expect a significant boost in performance and life expectancy. In fact, your BendPak XPR-9F might be the last lift you ever purchase. No one surpasses us in quality and safety. Not now, not ever. That's why when you get a BendPak, you get more than just a fantastic lift. You get peace of mind. That's the BendPak benefit.

    Getting the right lift for your application is easy with the help of your local BendPak dealer or by investigating the customer focused product materials found on our website.

    Want to save some floor space with a narrower XPR-Series lift, but still want shorter columns? Consider the XPR-9FS.

    Every XPR-9FSX comes with:

    Low-profile, dropped-end frame contact pads
    Squeeze under even the lowest compact and sport vehicles.

    Included truck and van adapters
    Others might charge extra for these necessary adapters, but they're standard with every XPR-Series lift. Ideal for trucks and vans with running boards or auxiliary fuel tanks.

    Lowered arm tube supports
    To minimize the chance of damaging vehicles with low-hanging vehicle doors, we completely redesigned our arm tube supports to allow for better clearance.

    Automatic arm restraints
    Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear arm restraints automatically disengage to provide easy positioning of the lift arms.

    Taller lift carriages
    Take a close look at our lift carriages (the lifting assembly that the arms are attached to) and then take a look at the competition. You'll notice our 53" tall carriages are considerably taller than most, which minimizes the stress placed on the load bearings and columns.

    Maintenance-free load bearings
    Rather than using roller bearings that need to be constantly lubricated, every XPR-Series lift carriage uses high-tech UHMW (ultra-high molecular weight polyethylene) load bearings that never need lubrication and are designed to last the entire life of the lift.

    Single-piece columns
    We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.

    Wide or narrow selection
    Wide or narrow designs are available, allowing you to maximize your floor space. The XPR-9F is the narrow version of this model series. Check out the super-wide XPR-9FSX if you need to lift something even bigger.

    Single-point safety release
    The single point safety release and "dead man" style operation controls makes every one of our XPR-Series lifts easy to operate and safe to use.

    On the level
    Our dual-synchro equalization system maintains equal lifting and provides operators with a stable, level vehicle working condition.

    Industrial-grade hydraulic cylinders
    Integrated into every XPR-Series hydraulic cylinder is a one-piece, pilot fitted, machined steel piston that is wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time.

    High-speed hydraulics
    Free-flow, high-pressure 3/8" hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speed rates for enhanced productivity.

    Durable powder-coat finish
    All XPR-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.

    Detailed instructions
    Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines.

    *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

    • 9,000-lb lifting capacity
    • Shorter column for low-ceiling installations
    • Wider drive-thru clearance
    • Single-piece columns
    • Single-point safety release
    • Drop-end arms provide a lower pad height
    • Chain lifting system combined with dual hydraulic cylinders
    • Electric / hydraulic power system
    • Large, 20" x 19" steel base plate
    • Self-lubricating dura-glide UHMW polyethylene bearing system
    • Safety locks in each column spaced every 3"
    • Automatic arm restraints
    • Heavy-duty 3/8" aircraft-quality equalizer cables
    • Truck and van adapter set standard
    • Triple-telescoping / low-profile arms option available

    • Best Warranty Car Lifts - BendPak

      How to choose the right car lift for you

      BendPak's Top 10 Car Lift Buyers Guide

    • Lifting capacity*: 9,000 lbs. / 4,082 kg
      • *Max capacity / front axel: 4,500 lbs. / 2,041 kg
      • *Max capacity / rear axel: 4,500 lbs. / 2,041 kg
    • Overall height: 113" / 2,870 mm
    • Overall width (outside of base plate): 145" / 3,683 mm
    • Width (outside of columns): 137" / 3,480 mm
    • Cover height: 2" / 51 mm
    • Inside columns: 115" / 2,921 mm
    • Front arm min reach: 25-1/2" / 648 mm
    • Front arm max reach: 49-1/2" / 1,257 mm
    • Rear arm min reach: 32-1/2" / 825 mm
    • Rear arm max reach: 52-1/2" / 1,333 mm
    • Min pad height: 4" / 102 mm
    • Rise: 72" / 1,829 mm
    • Lift height max (pad only): 76" / 1,930 mm
    • Lift height max (6" adapter): 82" / 2,083 mm
    • Drive-thru clearance: 106" / 2,692 mm
    • Motor: 220 VAC / 60 Hz / 1 Ph
    • Time to full rise: 45 sec
    • Max load per arm: 2,250 lbs. / 1,021 kg

    *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

    BendPak XPR-9FSX short-style floor plate two post lift wide
    BendPak XPR-9FSX short-style floor plate two post lift wide
    BendPak XPR-9FSX carriage assembly

    Featured accessories for the XPR-9FSX


    Llámenos GRATIS en USA al:
    1-800-253-2363
    Preguntas Frecuentes


    Breve Información

    Lifting capacity: 9,000 lbs.
    Overall height: 113"
    Overall width: 145"
    Min pad height: 4"
    Rise: 72"
    Motor: 220 VAC / 1 Ph
    Rise time: 45 sec.
    Shipping weight: 1,780 lbs.
