HDO-14LSX 14,000-lb. Capacity Extended Length, Open Front Alignment Lift

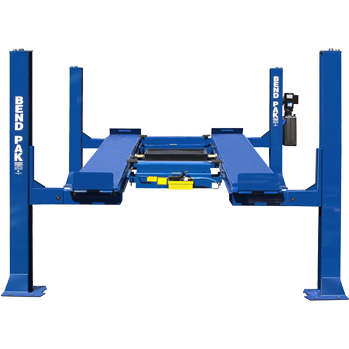

BendPak HDO-14LSX open-front alignment lift
DISCONTINUED

    The BendPak product has been discontinued.
    This page exists for informational purposes only.

    BendPak's HD-Series alignment lifts are engineered to meet the strenuous demands of even your toughest professional lifting jobs. Designed into every HD-Series lift is a laundry list of key features as long as your arm to ensure that BendPak is the absolute best you can buy. Our competitors might say we overdo it, but we don't include components for the sake of frills and flash. We design our lifts with the attributes we feel should come standard with every lift—the kind of lift we would want to (and do) own. Take the HDO-14LSX for instance. This is the sturdy beast you want as the backbone of your shop; especially if you want to specialize in servicing larger, low ground clearance vehicles and have the convenience of an open-front design. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle. We call it "free floating." You'll call unbelievably easy. It's just another way that you can bet on BendPak lifts for increased durability, safety and productivity. Spend less time worrying about what you're working under and more time thinking about what you're working on. Our commercial-grade lifts are second to none and recognized the world-over as benchmarks of dependability and quality.

    Don't want or need the convenience of an open-front alignment lift? No problem. Check out the standard HD-14LS, the extended HD-14LSX and the super-long HD-14LSXE.

    Open-front design
    We engineered the HDO-14LSX without a front cross bar so the operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This is a must for busy alignment bays.

    Patented adjustable front outrigger tubes
    For precise front-lift leveling, nothing beats our patented adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and even unlevel floors.

    Dependable design
    4 heavy-duty, high-quality, stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway makes this lift the most durable, maintenance-free lifting system on the market.

    Dual-hub cable sheaves
    Reduce stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub cable sheaves, even if they cost us more to make. When you buy BendPak, we throw in peace of mind as a free gift.

    Multi-level locking positions
    The HDO-14LSX is equipped with multiple adjustable height locking positions for variable-height parking. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

    Heavy-duty aircraft cable
    Each lift is supplied with 4 high-quality stainless steel lifting cables, rated at 14,400 lbs. each. The combined rating of these cables is more than 411% of the maximum lifting capacity of the entire lift! And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself.

    Electric / hydraulic power system
    We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.

    Large base plates
    12" x 12" base plates provide a solid foundation for the HDO-14LSX.

    Single hydraulic cylinder
    Leak proof cylinder technology only available for BendPak four-post lifts
    Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture.

    Durable powder-coat finish
    All HD-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder “sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.

    Non-skid runways
    Gives you maximum grip, even when the runway surface is wet or oily.

    Longer approach ramps
    These approach ramps were designed a little longer to help when loading low ground clearance vehicles. It's the little bit that makes a big difference.

    Heavy-duty adjustment plates
    Multi-caster slip plates in the back and turn plates in the front allow for extremely precise, free-floating alignment. Multiple turn plate pockets let you position the turn plates in the location best suited to individual vehicle positioning. Provides for more clearances related to allowable equipment installations.

    Adjustable safety ladders
    Perfect your alignment setup. Each column has these adjustable safety ladders for multi-position leveling.

    Integrated design
    Lifting cables, airlines, safety latches and sheaves are all fully enclosed.

    Automatic safety locks
    Aircraft-quality stainless steel and aluminum pneumatic cylinders release all 4 locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

    *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for complete listings or contact BendPak via contact@bendpak.com.

    • 14,000-lb. lifting capacity
    • Extremely convenient open-front design for easy access
    • Extended runway length for servicing
    • Longer approach ramps for low ground clearance vehicles
    • Electric / hydraulic power system
    • Runways include rail-kit for optional accessories
    • Runways adjust for different tread widths
    • Automatic leveling system with multiple auto-leveling locking positions
    • Equipped with heavy-duty rear slip plates and front turn plates
    • Multiple turn plate pockets for better wheelbase accommodation
    • Single hydraulic cylinder mounted underneath runway
    • Fully enclosed lifting cables, safety locks, and sheaves
    • Internal anti-sway slider blocks in each column
    • Pneumatic push-button safety release
    • Features heavy-duty 1/2" aircraft cable
    • Safety locks enclosed in columns minimize pinch points
    • Oversized sheave diameter reduces cable fatigue
    • Runways feature non-skid surface
    • Rugged, self-lubricating cable sheaves
    • Features 1-3/8" sheave axles
    • Multi-position safety locks in each column
    • Independent backup slack-cable safety latches
    • Includes fully adjustable lock stops for precise leveling
    • Integrated rolling bridge airline kit option available
    • Roll-back kit options available
    • Optional drive-thru ramps available
    • Optional drip trays available
    • Optional 7,000-lb. capacity rolling jacks available (Model RJ-7)

    • How to choose the right car lift for you

      BendPak's Top 10 Car Lift Buyers Guide

    • Lifting capacity: 14,000 lbs. / 6,350 kg
    • Front axle max capacity: 7,000 lbs. / 3,175 kg
    • Rear axle min capacity: 7,000 lbs. / 3,175 kg
    • Overall front width: 139" / 3,531 mm
    • Overall rear width: 126" / 3,200 mm
    • Outside length: 208" / 5,283 mm
    • Overall length: 238" / 6,045 mm
    • Height of front columns: 100" / 2,540 mm
    • Height of rear columns: 88" / 2,235 mm
    • Runway min height: 9-1/4" / 235 mm
    • Max rise: 70" / 1,778 mm
    • Max lifting height: 79-1/4" / 2,013 mm
    • Width between posts: 116" / 2,946 mm
    • Runway width: 20" / 508 mm
    • Width between runways: 43" / 1,092 mm
    • Length of runways: 198" / 5,029 mm
    • Min 4-wheel alignment: 72" / 1,828 mm
    • Max 4-wheel alignment: 135" / 3,428 mm
    • Max 2-wheel alignment: 174" / 4,420 mm
    • Min wheelbase @ rated capacity: 140" / 3,556 mm
    • Min wheelbase @ 75% capacity: 120" / 3,048 mm
    • Min wheelbase @ 50% capacity: 100" / 2,540 mm
    • Min wheelbase @ 25% capacity: 80" / 2,032 mm
    • Locking positions: 13
    • Lock spacing: every 4" / 102 mm
    • Lifting time: 60 sec
    • Motor: 220 VAC / 60 Hz / 1 Ph
    • Shipping weight: 3,988 lbs. / 1,813 kg
    • Shipping dimensions: 204" x 22" x 40" / 5,182 mm x 559 mm x 1,016 mm

    Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

    *Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2006 or ANSI/UL 201. Consult www.autolift.org for complete listings or contact BendPak via contact@bendpak.com.

    BendPak HDO-14LSX open-front alignment lift
    BendPak HDO-14LSX open-front alignment lift
    HDO-14LSX safety lock release assembly
    HDO-14LSX turn plate assembly
    HDO-14LSX rear slip-plate assembly
    HDO-14LSX power unit pump assembly
    HDO-14LSX cable sheave rollers
    HDO-14LSX cable block assembly

    Featured accessories for the HDO-14LSX
